Frequency converter iSaver+ 2200C, 400 V, max. 2,2 kW
Frekvenční měnič; Pump type: 3 fázové; Voltage: 230 V AC; Output: max. 2,2 kW; Output voltage: 3f, 0 - 240 V AC; Operating temperature: -10 až +40 °C; Speed range: 1200 - 2900 rpm; Output current: max. 8 A; Protection index: IP65
Product is no longer available
| ID item: | 57D322C |
| Category: |
Frequency drive |

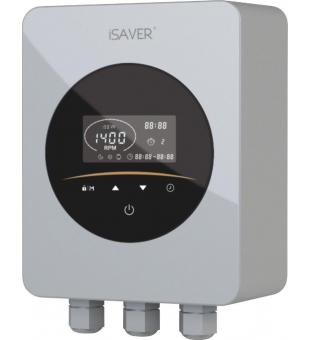

Touch screen frequency converter.
- Up to 4 timers can be set – each can be set differently speed
- External control via RS485 relay can also be connected output (max. 2,5 A, 500W) , digital/analogue input
- 3 modes – Day/Night/Flush
- RPM from 1 200–2 900 RPM (step by 50 RPM)
- Can be connected to Intelligent pool control VArio (PUMP MODULE)
Technical parametres
| Product type: | Frekvenční měnič |
|---|---|
| Pump type: | 3 fázové |
| Voltage: | 230 V AC |
| Output: | max. 2,2 kW |
| Output voltage: | 3f, 0 - 240 V AC |
| Operating temperature: | -10 až +40 °C |
| Speed range: | 1200 - 2900 rpm |
| Output current: | max. 8 A |
| Protection index: | IP65 |
Logistics
| Weight: | 2.93 kg |
|---|---|
| In group packs: | 0 |
| On palette: | 0 |
