Heat Pump RAPID MINI RM05N 5kW 230V
Product is no longer available
| ID item: | 565RM42 |
| Category: |
Heat pumps RAPID Heat Pumps Rapid Heat pumps RAPID |

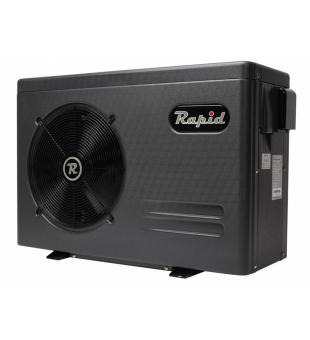

RAPID Heat Pump
Last generation of heat pumps designed to heat pools using residential heat energy from air as other heat pumps. This energy is passed throught exchanger to swimmingpool water. Rapid use the most modern technology „RAPID Power Technology“ that ensures highest efficiency and output. From each consumed kilowatt you are getting up to 7 kW of heating output. The case is made of UV resistant plastic.
Elegant dark grey colour plastic case – aluminium frame.
Advantages
• Take energy from atmosphere at any weather
• Save up to 80% of cost for pool heating
• RAPID Power Technology = rise the efficiency for more than 20%
compared to common heat pump
• Titanium exchanger – corrosion–resistant – even for salt water
• Top-class japan silent compressor
• Condenser of compressor is designed for 130 °C (normally 90 °C)
• Heat pump is designed for operating temperatures 0–43 °C
• Defrosting function – increase effectivity
• Silver welding – leak tightness and long-time chlorine resistance
• Two-speed fan ensures extremly load operating
• Oval digital panel with User mode for easy control
• Possibility of remote control
• Easy to control and high quality manufactured
• Fully automatic swimming pool heating process
• Possibility of circulation pump control
• Easy installation and maintenance
• Enviroment – friendly
Produced by ISO 9001 standards. After production, each unit is tested for 45 minutes at production line; in addition, 3% of all produced heat pumps undergo a long-term test.
Warranty: 5 years for compressor and exchanger, 2 years for other components
Technical parametres
| Cooling: | Ne |
|---|---|
| Recommended pool volume: | 0-20 m3 |
| Rated power: | 0,9/1,2 kW |
| Refrigerant used: | R410A |
| Efficiency: | 5,2 C.O.P. |
| For salt water up to 5 g/l (<0.5%): | Ano |
| For salt water above 5 g/l (>0,5%)): | Ano |
| Compressor: | rotační rotational |
| Net transport weight kg: | 35/40 kg |
| Net dimensions (w/l/h): | 760/270/470 mm |
| Fan orientation: | horizontální horizontal |
| Noise level: | 32 dB |
| For sea water: | Ano |
| Rated current: | 3,9/5,3 A |
| Output: | 5 kW |
| Flow: | 3 m3/h |
| Heat exchanger: | titan |
| Recommended water flow: | 3 m3/h |
Logistics
| Weight: | 40 kg |
|---|---|
| In group packs: | 1 |
| On palette: | 0 |
