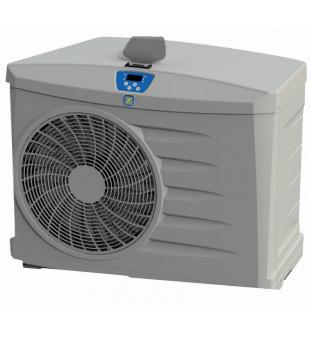

HEAT PUMP ZODIAC Z200 M3 9 KW

HEAT PUMP ZODIAC Z200 M3 9 KWProduct replaced
Color: Šedá ; Heating power: 9 kW; Cooling: Ne ; Recommended pool volume: 20-45 m3; Connection: 50 mm; Defrosting: Ano ; Rated power: 9 kW; Refrigerant used: R410A ; Voltage: 230 V; Efficiency: 4,7 C.O.P.

Product is no longer available

New product

565Z200M3N Z200 M3 9,3 kW

ID item:565Z200M3

Category: Heat Pumps Zodiac
Heat Pumps Zodiac
Zodiac heat pumps


Why choose the Z200 heat pump?
The Z200 heat pump is as a successor to the Power Series heat pumps. It offers a great price / performance ratio and is a great choice when purchasing a heat pump, thanks to its efficiency, reliability and simplicity.

Highly economic
Almost 80% of the energy used to heat your pool is from the ambient air. Thanks to the use of refrigerant fluid  R410A, the heat pump is much better at lower temperatures (the heat pump can be used at temperatures higher than +5 ° C).

Efficiently
It uses blade compressor technology, which is much more efficient than piston compressors.

Simple
On the LCD, simply press Start, enter the desired temperature and the Z200 heat pump will do the rest for you. Easy to install thanks to the included screw fittings and power cord.

The Z200 has several design elements that guarantee a long service life:

  • A plastic wrapper that guarantees stability and looks even after several years, there is no such problem with corrosion.
  • Using a more efficient R410a refrigerant, the coolant piping is reinforced.
  • It uses a titanium exchanger that is more resistant to salt / seawater

Technical parametres

Color:Šedá
Heating power:9 kW
Cooling:Ne
Recommended pool volume:20-45 m3
Connection:50 mm
Defrosting:Ano
Rated power:9 kW
Refrigerant used:R410A
Voltage:230 V
Efficiency:4,7 C.O.P.
Body material:Plast
For salt water above 5 g/l (>0,5%)):Ano - max 6g/l
Compressor:ano - Built in
Net transport weight kg:47 kg
Net dimensions (w/l/h):840 x 385 x 666 mm
Noise level:v 10m - 39,1 dB
Operating temperature:5 - 40 °C
Flow monitoring:Ano
Rated current:7,09 / 8,70 A
Flow:4-6 m3/h
Heat exchanger:titan
Recommended water flow:4 m3/h
Digital control panel:Ano

Logistics

Weight:51 kg
In group packs:1
On palette:0
