Intelligent Pool Control System VArio - extension module DIN LIGHTS
| Price without VAT: | 291,03 EUR / Pcs |
| ID item: | 516201 |
| Category: |
Intelligent control system VArio |
Add-on DIN LIGHTS Module for advanced lights control + 2 additional attractions
The add-on DIN LIGHTS module serves as an extension of the VArio Intelligent Pool Contreol system and is designed for advanced light control. After connecting to the main DIN module (compatible from DIN Module version 1.2 - 516200+), the number of attractions will increase to 4 and you will be able to control the lights incl. color switching and selection, lights synchronization, etc.

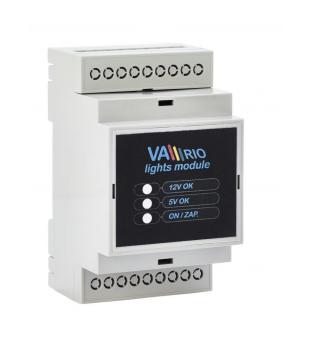

The package contains the VArio DIN LIGHTS DIN rail add-on module, which provides advanced light control and adds 2 more attractions (Atr3 + Atr4). Attraction 4 allows control of the second set of RGB lights with DMX communication (if connected).
The package also includes a short RJ45 communication cable for connection inside the switchboard. A communication cable is required to connect the DMX lights control module (see below).
DIN LIGHTS module outputs
LR1 - Lights: light power supply control / RGB light control without communication via DMX / RS485 - next ON / OFF / Timer, next color, factory mode selection, synchronization. Compatible lights: SeaMaid, RGB Flat
LR2 - Attraction 4: timer, step 15 min, 0-120 min. Attraction 3 will be available after connecting the DIN LIGHTS module to output R3 of the main DIN module, instead of the original light output. The second set of RGB lights with DMX communication can also be controlled via Attraction 4.
DMX output: intelligent light control with communication: switching, color / brightness / scene selection, synchronization. Compatible lights: Adagio Pro, Hugo Lahme, Wibre
To connect the DIN LIGHTS module with lights with DMX / RS485 communication and a source outside the switchboard, it is necessary to purchase an additional DMX connection cable - see the items below:
516135 - VArio - communication cable for DMX lights - 3 m
51613510 - VArio - communication cable for DMX lights - 10 m
Technical parametres
| Product type: | Rozšiřující modul systému VArio k pokročilému řízení RGB světel, se 2 atrakcemi navíc |
|---|---|
| Coverage: | 20 IP |
| Easy to install: | Ano |
Logistics
| Weight: | 0.5 kg |
|---|---|
| In group packs: | 1 |
| On palette: | 0 |
